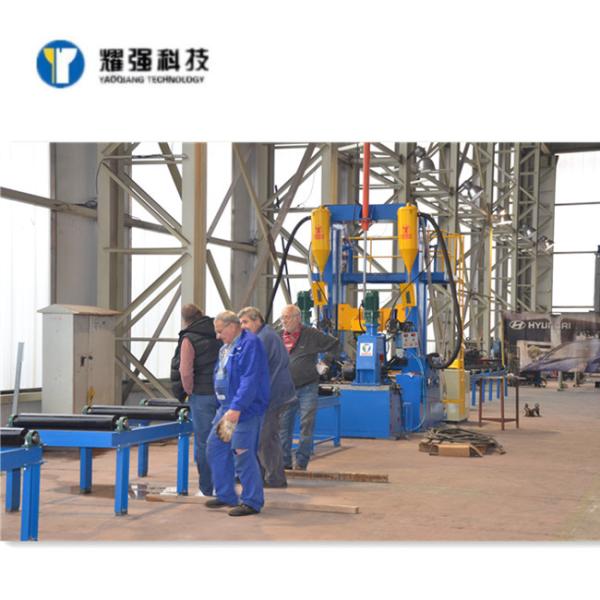

6mm To 14mm Assembly H Beam Welding Machine 200-800mm

Name: 6mm To 14mm Assembly H Beam Welding Machine 200800mm
Brand: yaoqiang
Price: 1 USD

China 6mm To 14mm Assembly H Beam Welding Machine 200-800mm wholesale

Brand Name : yaoqiang

Model Number : YQPJ1200/1500/2000

Certification : CE

Place of Origin : Jiangsu China

MOQ : 1 set

Price : US $35,000-45,000/ set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 sets/month

Delivery Time : 20 days

Packaging Details : standard packing

Specification : 4100mm*2100mm*1600mm

Web Plate Thickness : 6-14mm

Flange Plate Thickness : 6-20mm

Flange Plate Width : 200-800mm

Web Plate Height : 200-1500mm

Function : Beam Making

Contact Now

YQPJ2000 Assembly Welding Straightening Combination Machine for H/I beam Max web height 2m

Our company is specialized in the design of irregular parts and special products, widely used in shipbuilding, chemical, petrochemical, construction, boiler and nuclear power and other industries.

H-beam steel structuer production line for welding of H steel welding production. The production line can continuously complete T type, H type in the production process of steel erection, welding, orthopedic, discharging process. The production process controlled by the program, the welding speed adjustment by frequency conversion technology.

This machine is suitable for use in the workplace, less affordable, comprehensive functions. It includes 3 main steps: H beam manufacturing assembly - Welding - correction. It can be symmetric and non symmetric section production H type and T type beam. It also can complete the following steps: the initial beam assembly and final assembly, welding submerged arc butt beam in the vertical state, the welding deformation of the beam (mushroom) correction. Automatic assembly machine is equipped with.H type assembly solder circulating system to reduce the consumption of the beam and welding flux for automatic production mode. By adjusting the speed of the beam in the program monitor, so as to ensure the quality of welding seam.

Composition:

Main machine: including H steel assembly, welding, straightening, roller conveying and so on.
Electrical control system: main control cabinet, set the PLC program system, touch screen display lamp

3.Erecting mechanism: Web clamping, wing plate clamping, lower pressing device

4.Lifting mechanism: inputting roller table device;

5.The discharging mechanism (including lifting mechanism 2): outputting roller table device;

6.Hydraulic system: oil cylinder, hydraulic pump station, high-pressure oil pipe lamp

7.Alignment mechanism: cylinder lifting device

8.Wire feeding mechanism assembly:

9.Work platform and escalator: accessories and so on

10.Welding power supply two: power supply, control box, welding cable, control cable and so on

11.Flux recovery device two sets: whirlpool pump, recovery device, funnel, etc.

Model	web height	web thickness	welding and straightening speed	flange width	flange thickness	overall power
YQPJ1000	1000mm	6-16mm	0.35-3m/min	200-800mm	6-20mm	13.4kw
YQPJ1200	1200mm	6-16mm	0.35-3m/min	200-800mm	6-20mm	13.4kw
YQPJ1500	1500mm	6-16mm	0.35-3m/min	200-800mm	6-20mm	13.4kw

6mm To 14mm Assembly H Beam Welding Machine 200-800mm

NO.	MODEL	YQPJ1500
1	Web height	1500 mm
2	Web thickness	6~32 mm
3	Flange width	150~800 mm
4	lange thickness	6-40 mm
5	H beam length	4000~15000 mm
6	Dimensional adjustment system	Separate, mechanical
7	welder	2 sets of Mechanical submerged arc welding machine
8	Welder Power	2×75KW
9	Welder type	automatic submerged arc welding
10	weld speed	0-1000 mm/min
11	Weld speed adjustment	level and smooth
12	Head angle adjustment	±45°±12.5
13	Pressure of hydraulic system	≤10 Mpa
14	Automatic welding cycle system	2sets
15	Flux	2×100 kg
16	Total power	24 kw Except for welding power supply
17	Overall dimensions (L * w * h)	30000×3270×5150 mm

6mm To 14mm Assembly H Beam Welding Machine 200-800mm

weld size(mm)	wire diameter(mm)	welding current (A)	welding voltage(V)	welding speed(mm/min)
4	3	350~370	28~30	880~910
6	3	450~470	28~30	900~960
6	4	480~500	28~30	960~1000
8	3	500~530	30~32	730~760
8	4	670~700	32~34	800~830

No.	Name
1	welder	MZ-1000(optional,also can use CO2 welder)
2	Welding machine control box	MZ-1000
3	Inverter manufacturers	11KW,2.2KW HUICHUAN
4	Major electrical equipment manufacturers	SIEMENS, OMRON (Japan)
5	Hydraulic parts manufacturers	TAIWAN
6	main motor supplier	NANTONG
7	Wing web centering motor	2 sets NINGBO
8	Main reducer manufacturers	CHANGZHOU
9	recovery equipment	2 sets WUXI

Supply matching:
Frame;
Console;
Pre assembled mechanism;
Feed roller table;
Delivery roller table;
2 sets of welding machine;
Hydraulic station;
Mushroom shaped deformation correcting mechanism for beam;
Welding console -2 sets for wire feed mechanism;
Wire box -2 parts;
Hydraulic hose;
Flux cycle system ----2 set;
Work platform and ladder;

The supply does not include:
1. foundation;
2. connect to the power and air source of the equipment;
3. equipment grounding;
4. welding wire or flux etc.
6mm To 14mm Assembly H Beam Welding Machine 200-800mm
