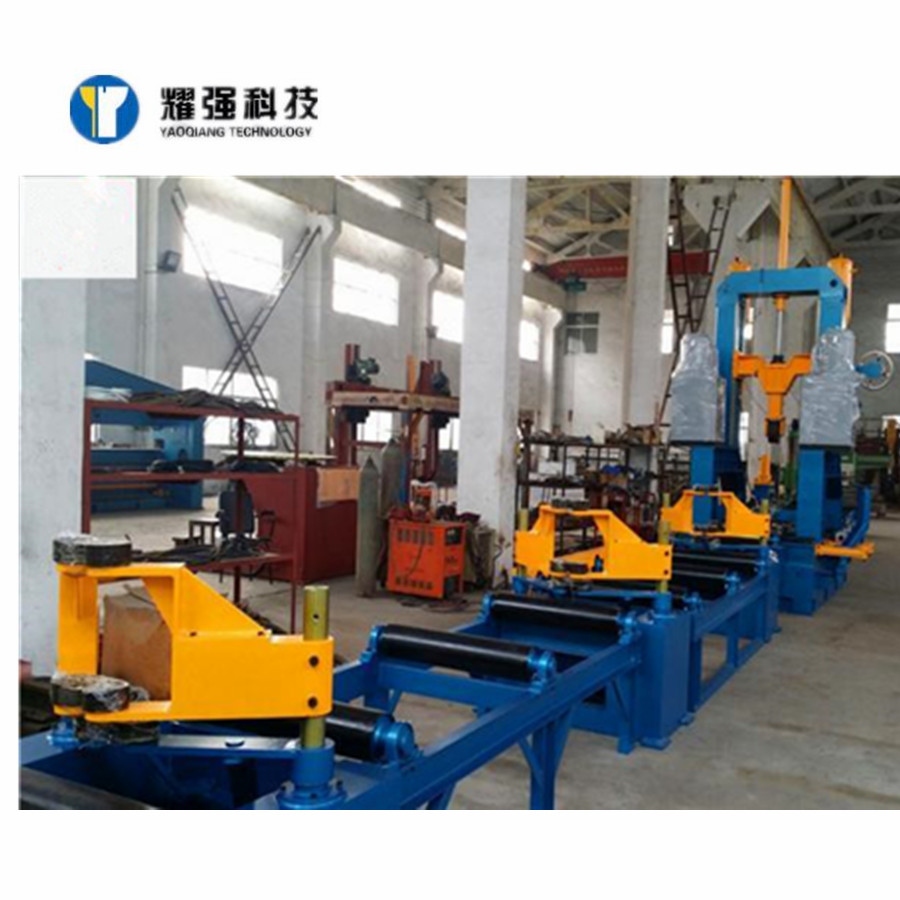

Single arc double wire H beam Assembly Hydraulic straightening Auto welding machine
The main assembly unit of the tailor-made welding machine produced by our company has obtained the patent of the heavy-duty assembly machine.
The webs and flanges are automatically positioned, and the alignment accuracy and welding efficiency of the webs and flanges are greatly improved.
At the same time, production costs are reduced and production time is saved.
| No. | Parameters | YQPJ15 | YQPJ18 | YQPJ20 |
| 1 | Flange thickness T | 6-16mm |
| 2 | Flange width B | 200-800mm |
| 3 | Web thickness A | 6-20mm |
| 4 | Web width H | 200-1500mm | 200-1800mm | 200-2000mm |
| 5 | H-beam length L | 4000-15000mm |

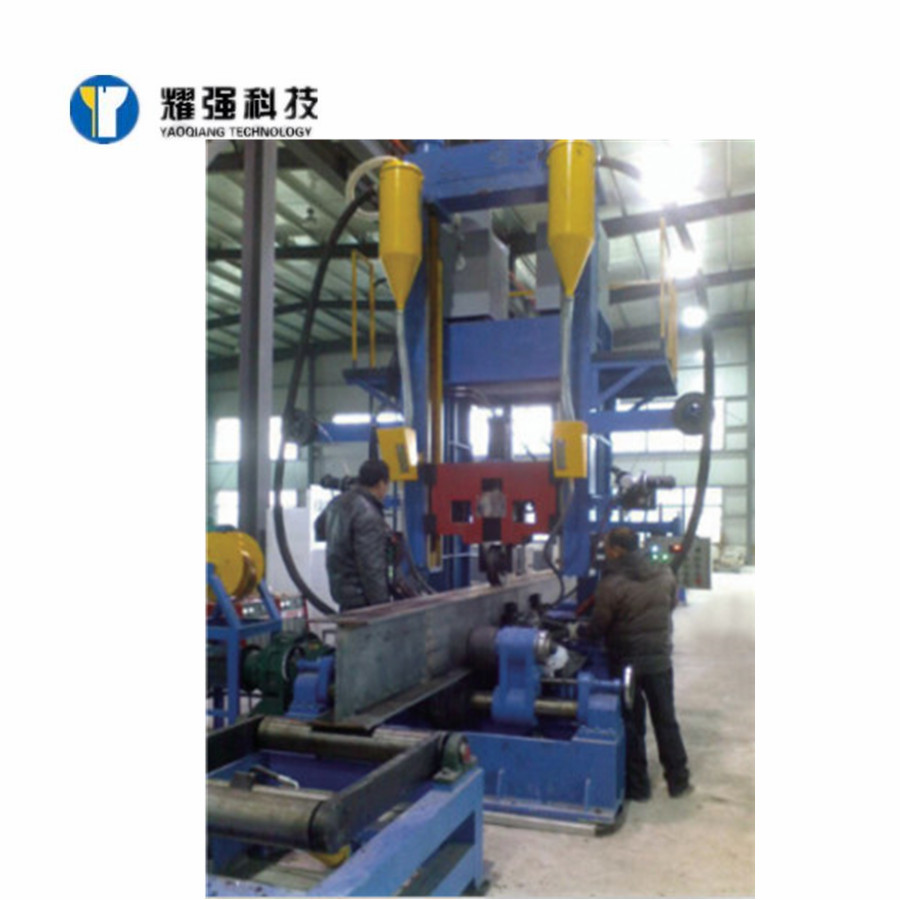

1. Durable welding gun fixing device, adjustable height and horizontal movement position. It can also adjust the welding gun angle from 2 positions. Make the H beam automatic welding beautiful and tidy;
2. The auxiliary straightening part is unique in design.
Two straightening wheels of 3in1 hydraulic assembly and welding line can actively straighten the workpiece under the drive of the cylinder. From the straightening device, the user can clearly see the welding seam, which is convenient for the adjustment of the welding gun position and the observation of the welding seam;
3. The main assembly machine and the auxiliary straightening machine can be used as an assembly welding machine or an assembly machine respectively;
4. The modified straightening machine can be used as a small straightening machine.
Our company is a high-tech enterprise specializing in automotive welding equipment and H-beam production lines.
Our products are used in construction industries such as pressure vessels, petrochemicals, power stations, heavy machinery and equipment, ships, and steel.
Structural equipment, etc., and special equipment can be designed according to customer requirements.
Products are exported to Russia,Southeast Asia, the Middle East, Europe and the United States.
