CE Certificate Automatic Assembly Welding Straightening 3 in 1 Intergrated Machine for H Beam

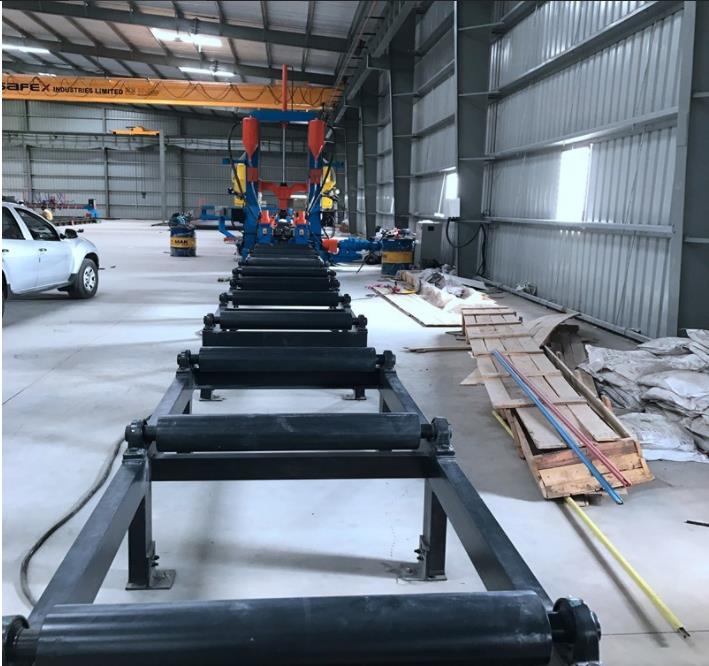

Automatic Assembly Welding Straightening 3 in 1 machine is suitable for use in the workplace, less affordable, comprehensive functions.
It includes 3 main steps: H beam manufacturing assembly - Welding - correction. It can be symmetric and non symmetric section production H type and T type beam.
It also can complete the following steps: the initial beam assembly and final assembly, welding submerged arc butt beam in the vertical state, the welding deformation of the beam (mushroom) correction.
Automatic assembly machine is equipped with.H type assembly solder circulating system to reduce the consumption of the beam and welding flux for automatic production mode.
By adjusting the speed of the beam in the program monitor, so as to ensure the quality of welding seam.
| Model | web height | web thickness | welding and straightening speed | flange width | flange thickness | overall power |
| YQPJ1000 | 1000mm | 6-16mm | 0.35-3m/min | 200-800mm | 6-20mm | 13.4kw |
| YQPJ1200 | 1200mm | 6-16mm | 0.35-3m/min | 200-800mm | 6-20mm | 13.4kw |
| YQPJ1500 | 1500mm | 6-16mm | 0.35-3m/min | 200-800mm | 6-20mm | 13.4kw |
Submerged arc welding machine specification as for your reference:
| No. | Name | |
| 1 | welder | MZ-1000(optional,also can use CO2 welder) |
| 2 |
Welding machine control box | MZ-1000 |
| 3 |
Inverter manufacturers | 11KW,2.2KW HUICHUAN |
| 4 |
Major electrical equipment manufacturers | SIEMENS, OMRON (Japan) |
| 5 | Hydraulic parts manufacturers | TAIWAN |
| 6 | main motor supplier |
NANTONG |
| 7 | Wing web centering motor | 2 sets NINGBO |
| 8 | Main reducer manufacturers |
CHANGZHOU |
| 9 | recovery equipment |
2 sets WUXI |
FAQ:
Q1: I knew nothing about this machine, how am i know this machine will meet my working needs?
Please tell us your workpiece size or show specific drawings, we will give you professional solutions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We provide overseas service and English manual, after installation, if any problems happen, we offer the remote video guidance and charging overseas service.
Q3: If some problems happen to this machine during warranty period, what should I do?
Contact us directly, we will supply free parts during machine warranty period. While we also supply free life long after-sales service.
Q4: If i want visit your factory, how can i get?
Company address:39#, Liandong U business park, Wuxi city, Jiangsu, China
Factory address:Xinhong Industrial Park, Dongtai Yancheng City, Jiangsu, China
1) Visa: if u need get a government visa, pls pay 20%(at least) prepayment for new customer. Wuxi government regulations. Thanks for support.
2) By train: Wuxi station. By air: Wuxi Shuofang Airport. We will drive u to our factory. 180km between Wuxi and Yancheng city.
Q5: Why your sales office at Wuxi, but your factory located at Yancheng?
10 years ago. In response to the Yancheng government investment invitation, our leader moved the factory from Wuxi to Yancheng, purchased 15,000 square meters of land and built factories. In order to reduce production costs and sustainable development.
