1500mm Bridge Sub Arc Automatic Beam Welding Machine

Name: 1500mm Bridge Sub Arc Automatic Beam Welding Machine
Brand: YAOQIANG
Price: 1 USD

China 1500mm Bridge Sub Arc Automatic Beam Welding Machine wholesale

Brand Name : YAOQIANG

Model Number : YQPJ

Certification : CE,ISO

Place of Origin : JIANGSU,CHINA

MOQ : 1 set

Price : US $42,000-55,000/ Piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10pcs/month

Delivery Time : 30days

Packaging Details : standard package

Name : Automatic assembly welding straightening machine

Work for : H beam I beam

Sold to : Russia,Oman,India,etc.

Model : YQPJ1500

Web thickness : 6-16mm

Welding and straightening speed : 0.35-3m/min

Flange width : 200-800mm

Flange thickness : 6-20mm

Contact Now

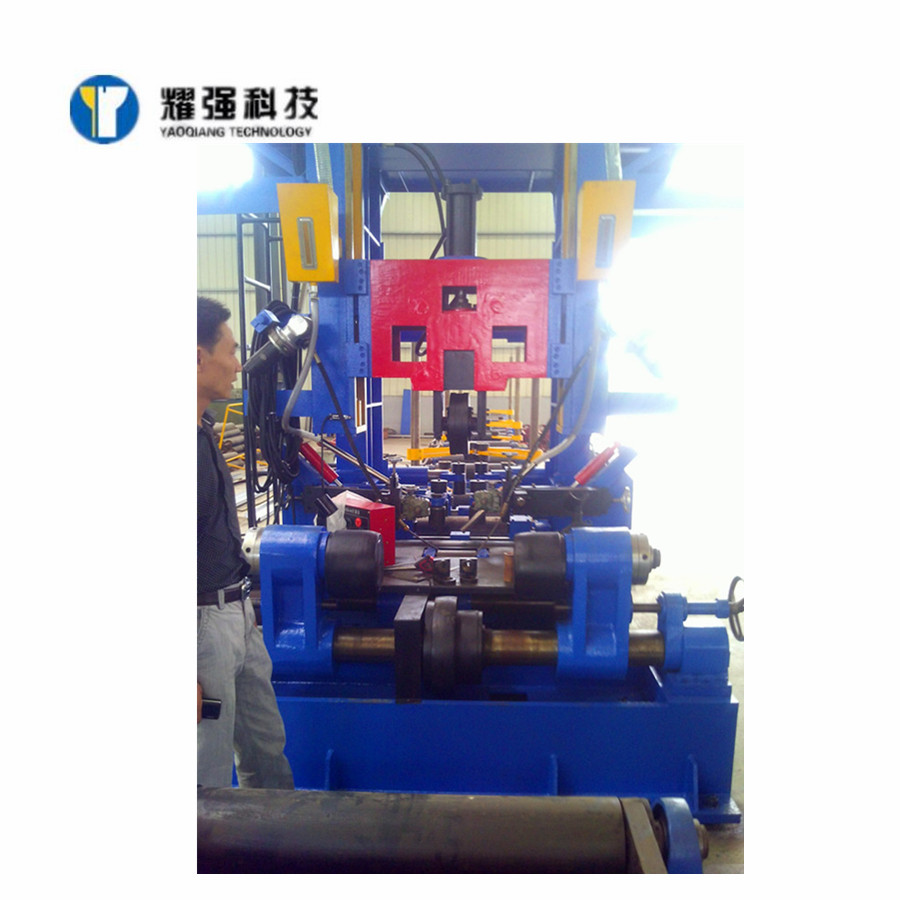

YQPJ1500 H-Beam Bridge beam Assembling Welding Straightening Machine

H beam manufacturing machine assembly - Welding - straightening can be symmetric and non symmetric section production H type and T type beam.

This assembly straightening and welding integrated machine can complete the following steps: initial H-shaped steel beam assembly and final assembly, welding submerged arc butt beams in a vertical state, and beam (mushroom) welding deformation correction.

Equipped with automatic assembly machine.

The H-type assembly welding circulatory system can reduce the consumption of light beam and flux and realize automatic production mode. By adjusting the speed of the beam in the program monitor, the quality of the weld is guaranteed.

Technical Parameters

NO.	MODEL	YQPJ1500
1	Web height	1500mm
2	Web thickness	6~32 mm
3	Flange width	150~800 mm
4	lange thickness	6-40 mm
5	H beam length	4000~15000 mm
6	Dimensional adjustment system	Separate, mechanical
7	welder	2 sets of Mechanical submerged arc welding machine
8	Welder Power	2×75KW
9	Welder type	automatic submerged arc welding
10	weld speed	0-1000 mm/min
11	Weld speed adjustment	level and smooth
12	Head angle adjustment	±45°±12.5
13	Pressure of hydraulic system	≤10 Mpa
14	Automatic welding cycle system	2sets
15	Flux	2×100 kg
16	Total power	24 kw Except for welding power supply
17	Overall dimensions (L * w * h)	30000×3270×5150 mm

1500mm Bridge Sub Arc Automatic Beam Welding Machine

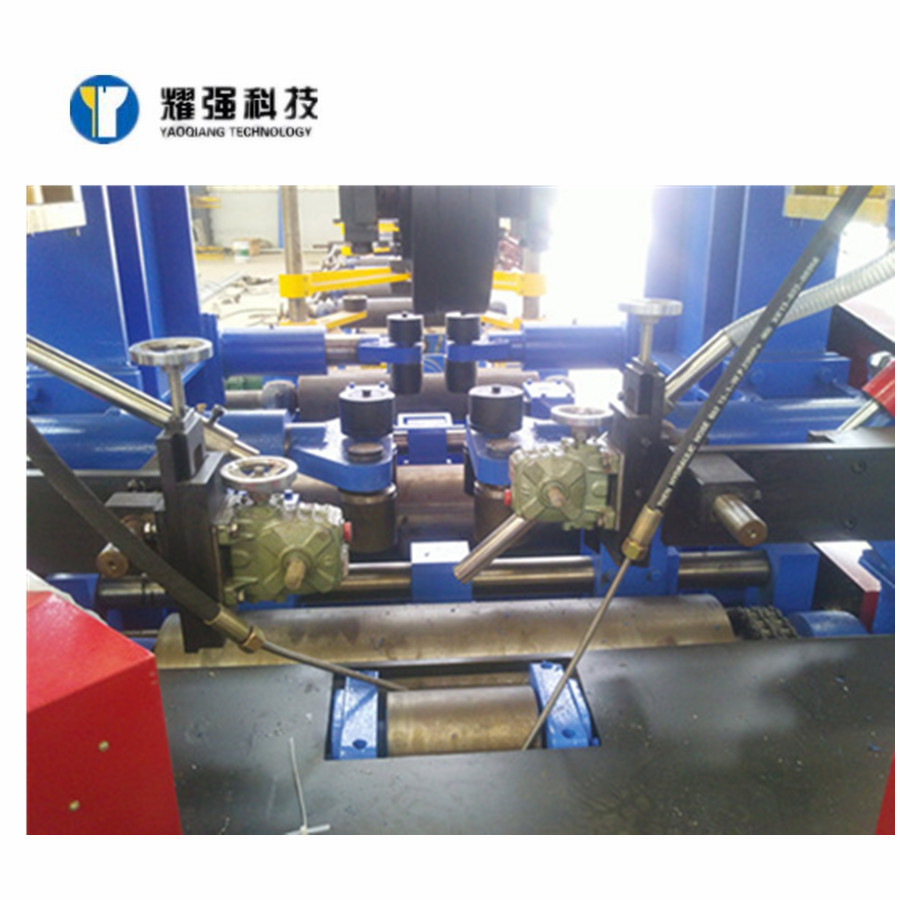

The flange plate web centering mechanism is driven by a hydraulic motor, which drives the clamping wheel to center and clamp the wing plate and web of the workpiece through a turbine reducer, gear transmission, and screw nut transmission to realize automatic centering.

Type	Web height	Thickness of the web	Welding speed	Flange width	Thickness of flange	Overall power
YQPJ1000	1000mm	6-16 mm	0.35-3 m/min	200-800 mm	6-20 mm	13.4 kw
YQPJ1200	1200mm
YQPJ1500	1500mm

There are various welding methods:

single-arc single-wire welding

single-arc double-wire welding

submerged arc welding or gas shielded welding according to the actual needs of users.

Weld size(mm)	Wire diameter(mm)	Welding current (A)	Welding voltage(V)	Welding speed(mm/min)
4	3	350~370	28~30	880~910
6	3	450~470	28~30	900~960
6	4	480~500	28~30	960~1000
8	3	500~530	30~32	730~760
8	4	670~700	32~34	800~830

1500mm Bridge Sub Arc Automatic Beam Welding Machine
